Distribution Board for use with Point Motors

Distribution Board for use with point motors  with (ON) OFF (ON) DPDT Toggles

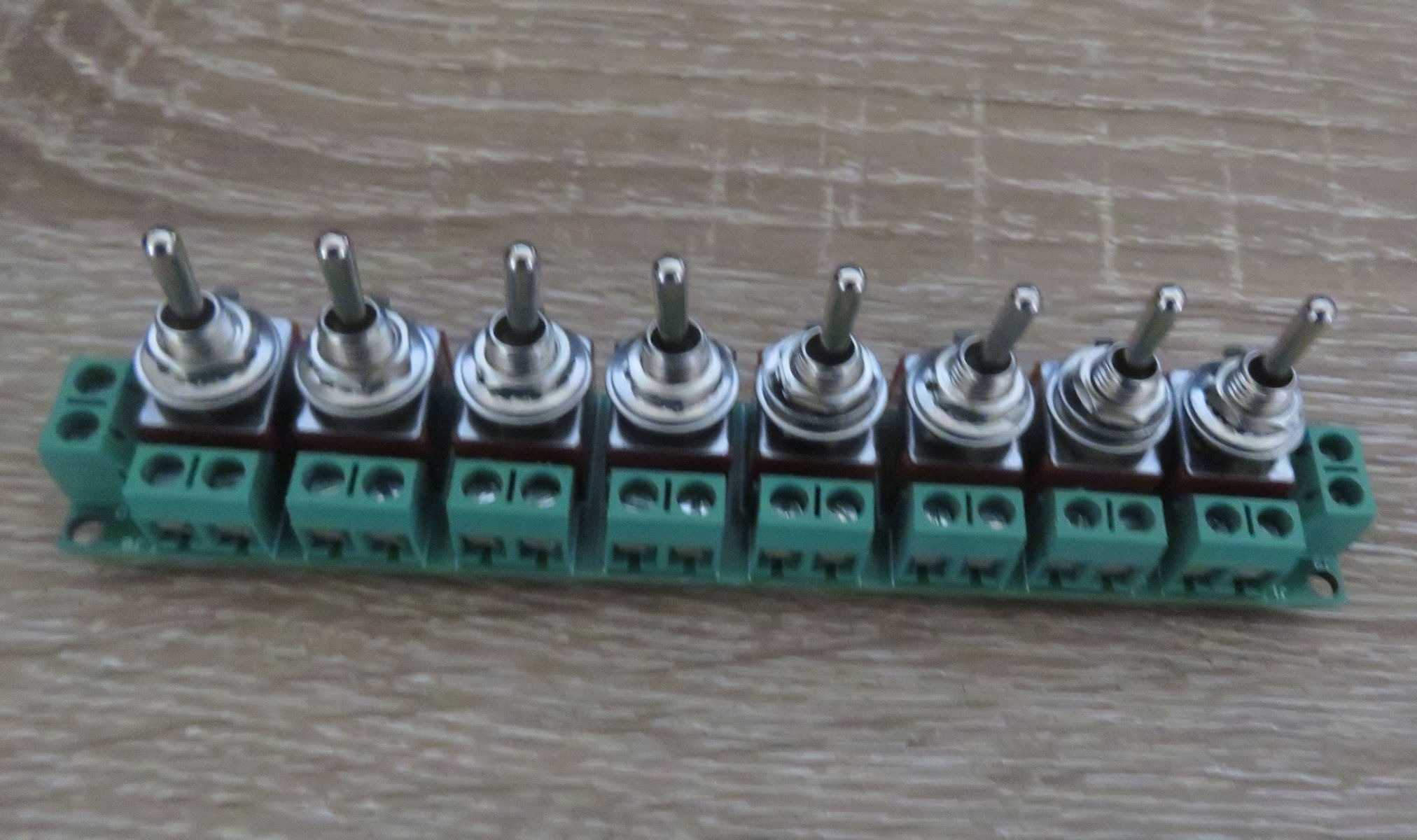

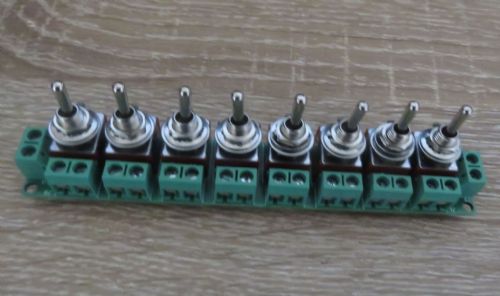

Designed to power model railway accessories.  Power is supplied to the module via the terminal block on the end, then power is controlled by the DPDT toggle switches and output via the terminal blocks.

• Provides power to 8x 2way, 5mm terminal blocks
• Power is controlled using the DPDT toggle switches
• Momentary (ON) OFF (ON) toggle switches
• Uses 2 terminal blocks for power input, the second can be used to power further modules
• The DPDT toggles allows the module to be used as a polarity reversing circuit
• Size: 120x22mm
• The PCB has mounting holes
• £12.99

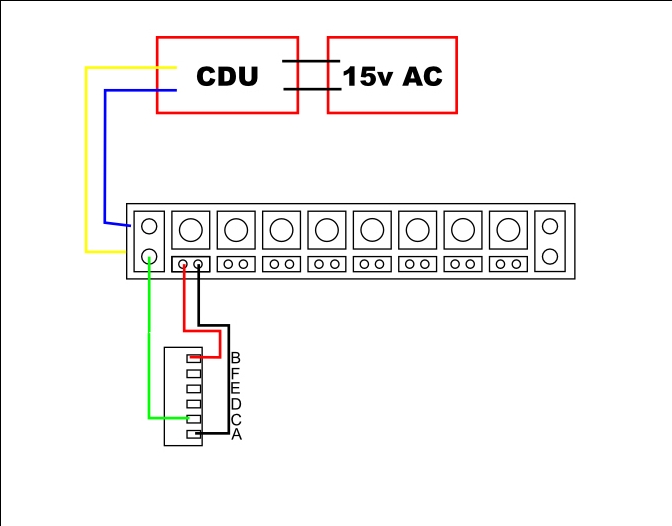

• Wiring Diagram
