Piggyaxe Alternating Flashing LED Kit

Piggyaxe Alternating Flashing LED Kit

A kit of parts to make a simple and reliable alternating flasher circuit based around the 555 timer.

In this circuit, it is used as an astable (oscillator) and directly drives two LEDs, flashing them alternately.

The LEDs can be moved further away from the circuit board by installing wires between the circuit board and the Leds.

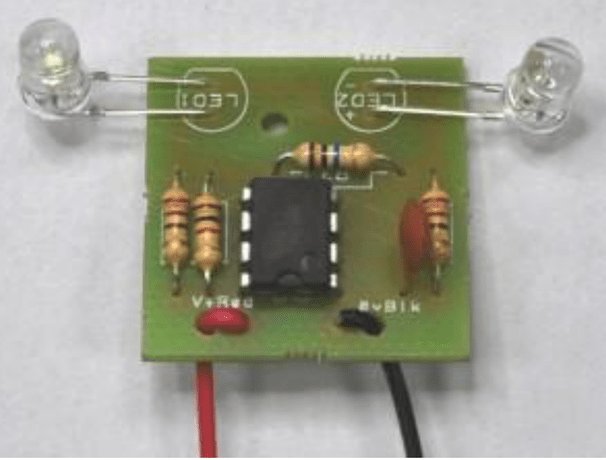

The image shows this kit assembled. It will be sent to you as a kit of components that will require soldering together.

• Kit contains printed circuit board and standard components
• Click here to download constructional notes for this kit
